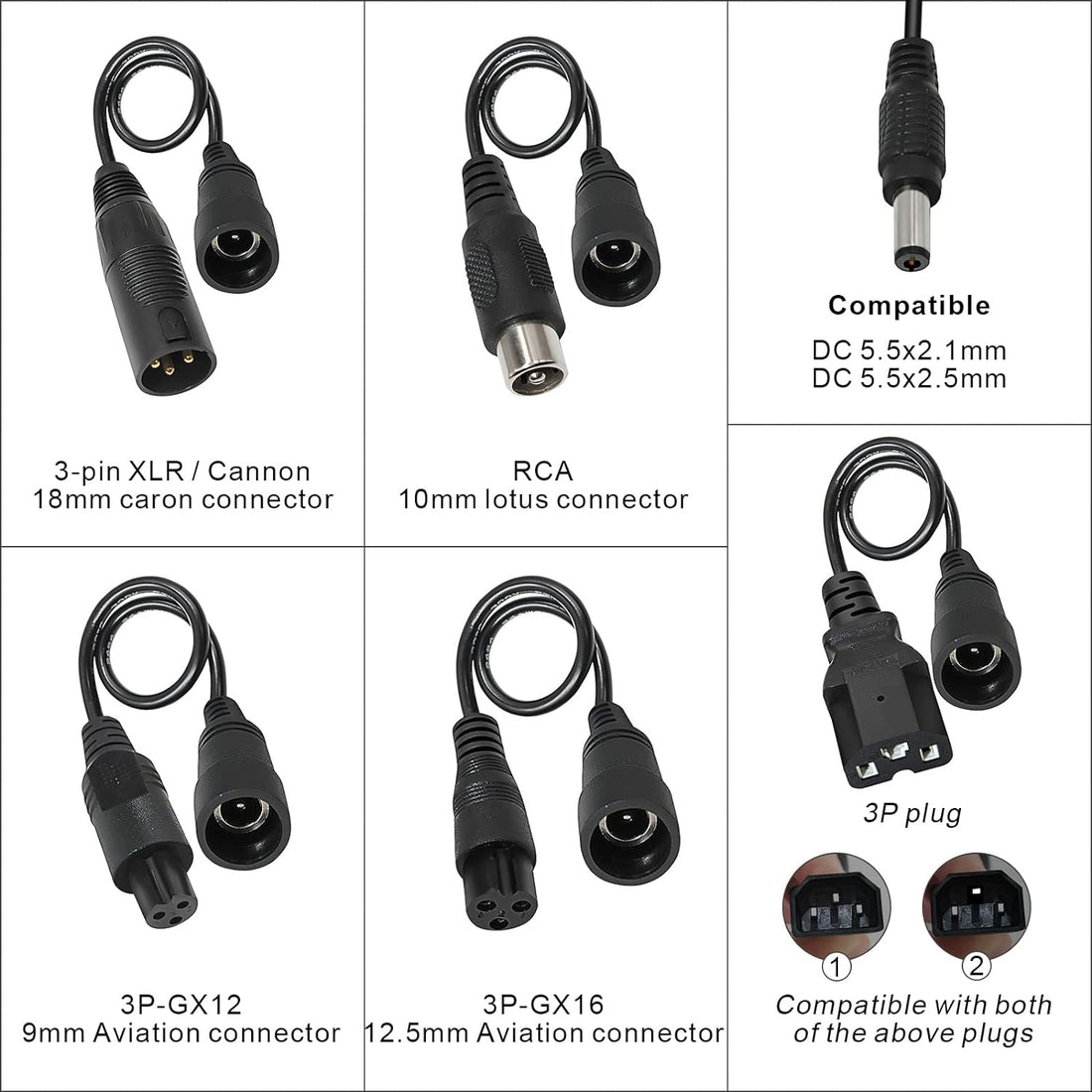

Electric bicycle (e-bike) chargers may come with different types of ports and connectors, depending on the manufacturer and e-bike model. The specific ports and connectors used can vary, but here are some common types and their differences:
DC 2.1 Port:
The DC 2.1mm barrel plug is a common type of connector used for low-voltage applications, including many e-bikes. The DC 2.1mm barrel plug has a cylindrical shape with a 2.1mm outer diameter and a center pin. It is used to transmit power from the charger to the e-bike's battery.
DC 2.5 Port:
The DC 2.5mm barrel plug has a cylindrical shape with a 2.5mm outer diameter and a center pin. It is used to transmit power from the charger to the e-bike's battery.
XLR Port:
The XLR connector typically has three or more pins, and it is used to transmit both power and data between the charger and the e-bike's battery management system. E-bikes from various manufacturers may use XLR connectors, but the specific pinout and voltage requirements can vary.
RCA Port：
RCA connectors are commonly used in audio and video equipment, and they are not typically used for charging e-bike batteries.
It's important to note that using an RCA port charger for an e-bike battery is not standard practice and may not be safe or compatible. E-bike chargers typically use specialized connectors, such as XLR, DC barrel plugs (like 2.1mm or 2.5mm), or custom connectors, depending on the manufacturer and model of the e-bike.
3-Pin Port:
This type of connector typically has three pins, which are used to transmit power and possibly data between the charger and the e-bike's battery management system.
Used on specific e-bike models. Like SANS 54.6V 5A | 3 PINS Port Electric Bike Charger
3 Prong Port:
The charger's cable typically has a 3-prong plug on one end for plugging into a standard electrical outlet or a power source, while the other end of the cable is equipped with the appropriate connector to charge the e-bike's battery.
Other Parts of Electric Bikes Charger
Voltage and Current Ratings:
E-bike chargers vary in their voltage and current ratings, which should match the specifications of your e-bike's battery. Common voltage ratings include 36V, 48V, and 52V, while current ratings are typically given in amperes (e.g., 2A, 3A).
LED Indicators:
Many e-bike chargers have LED indicators to display the charging status. They may show if charging is in progress, indicate a full charge, or alert you to any errors.
Additional Features:
Some e-bike chargers may include additional features like thermal protection, short-circuit protection, or overcharge protection to enhance safety and battery longevity.
Charging Time:
The charging time can vary based on the charger's current rating. Higher current chargers can charge the battery faster but may generate more heat. Lower current chargers take longer but may be gentler on the battery.
Compatibility:
It's crucial to ensure that the charger's port, connector type, voltage, and current ratings match your e-bike's battery specifications. Using an incompatible charger can damage the battery or charger.
Portable vs. Built-in Charger:
Some e-bikes have a built-in charger, which means the charger is integrated into the e-bike itself. Others come with a separate, portable charger that you can detach and carry with you. The type of charger can affect your charging options and convenience.
